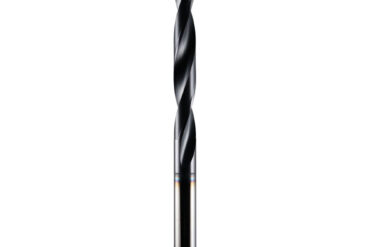

KYOCERA DRILL 68311 3.2 2FL SER 101 3.2x36x65

SGS 3.20mm Dia, 118 Degree Point, 3.20mm Shank Dia, 65.00mm OAL, 2 Flute, 5xD, Ti-NAMITE-A (AlTiN) Coated, Series 101, Solid Carbide Drill – 68311

Spec	Value
Cutting Diameter (DC) (mm)	3.20
Overall Length (OAL) (mm)	65.00
Shank Diameter (DCON) (mm)	3.20
Shank Length (LS) (mm)	28.96
Coolant Option	External Coolant
Number of Flutes	2
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(N) Non-Ferrous Materials\|(S) High Temp Alloy
Shank Type	Straight
Flute Type	Spiral
Helix Angle	Right Spiral
Coating Description	AlTiN (Ti-NAMITE-A)
