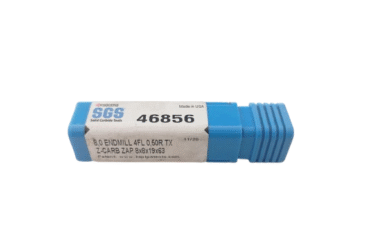

KYOCERA ENDMILL 46856 8.0 4FL 0.50R TZ Z-CARB ZAP 8x8x19x63

SGS 8.00mm Dia, 19.00mm LOC, 8.00mm Shank Dia, 0.50mm Radius, 4 Flute, 35-38 Degree Helix, Ti-NAMITE-X (TX) Coated, Series ZPMC, Z-Carb-AP, Corner Radius End Mill – 46856

Spec	Value
Cutting Diameter (DC) (mm)	8.00
Length of Cut (APMX) (mm)	19.00
Overall Length (LF) (mm	63.00
Shank Diameter (DCON) (mm)	8.00
Shank Length (LS) (mm)	43.99
Coolant Option	External Coolant
Number of Flutes	4
Primary Workpiece Material	(P) Steel\|(M) Stainless Steel\|(K) Cast Iron\|(S) High Temp Alloy
Shank Type	Straight
Flute Type	Spiral
Helix Angle	Variable Right Spiral
Coating Description	TX (Ti-NAMITE-X)
