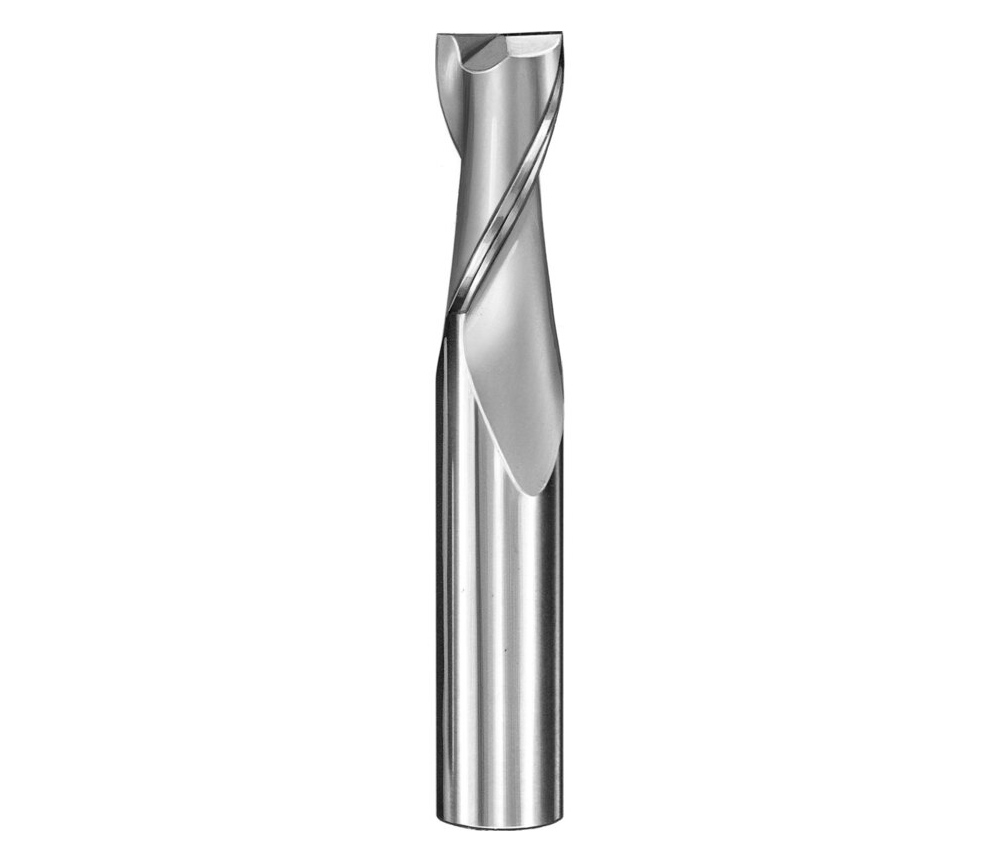

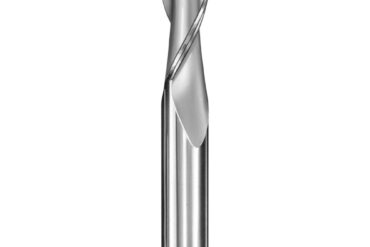

KYOCERA ENDMILL 30363 1/2 2FL SQ SER 03S 1/2×1/2x1x3

SGS 1/2″ Dia, 1″ LOC, 1/2″ Shank Dia, 2 Flute, 30 Degree Helix, Uncoated, Series 03S, Square End End Mill – 30363

Spec	Value
Cutting Diameter (DC) (Decimal Inch)	0.5000
Cutting Diameter (DC) (mm)	12.70
Length of Cut (APMX) (mm)	25.40
Overall Length (LF) (mm	76.20
Shank Diameter (DCON) (Decimal Inch)	0.5000
Shank Diameter (DCON) (Fractional Inch)	1/2
Shank Length (LS) (mm)	50.80
Coating Description	Bright/Uncoated
Number of Flutes	2
Additional Geometry	Right Hand Cut Direction (RHC)
Helix Angle	Right Spiral
