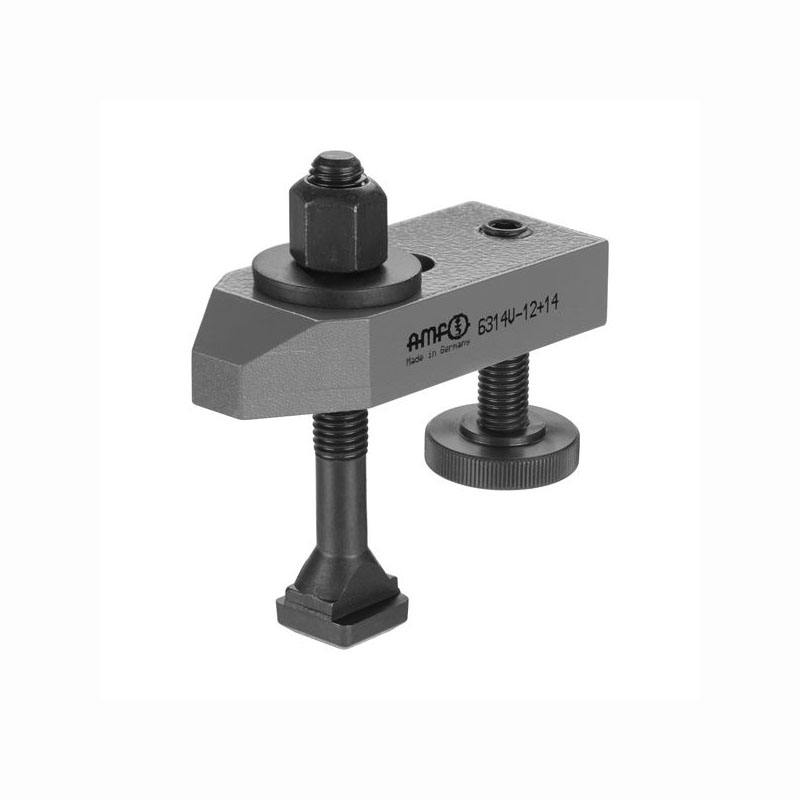

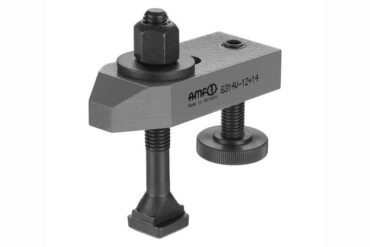

TAPERED CLAMP WITH ADJUSTING SUPPORT SCREW

Description

Version:

Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever).

Material:

Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size).

Supplied with:

Adjusting screw and T-bolt DIN 787


Length L	80 mm
Width B	30 mm
Height H	15 mm
Clamping height min.	8 mm
Clamping height max. h	32 mm
Width of slot a	10 mm
Distance from tip to slot e	15 mm
Clamping screw length	39 mm
Standard	DIN 6314
Thread	M10
Clamping screws	M10
Type of product	Plain clamp
Content	single part

Category Clamping System Tags clamping, tapered Brand: Hoffmann
