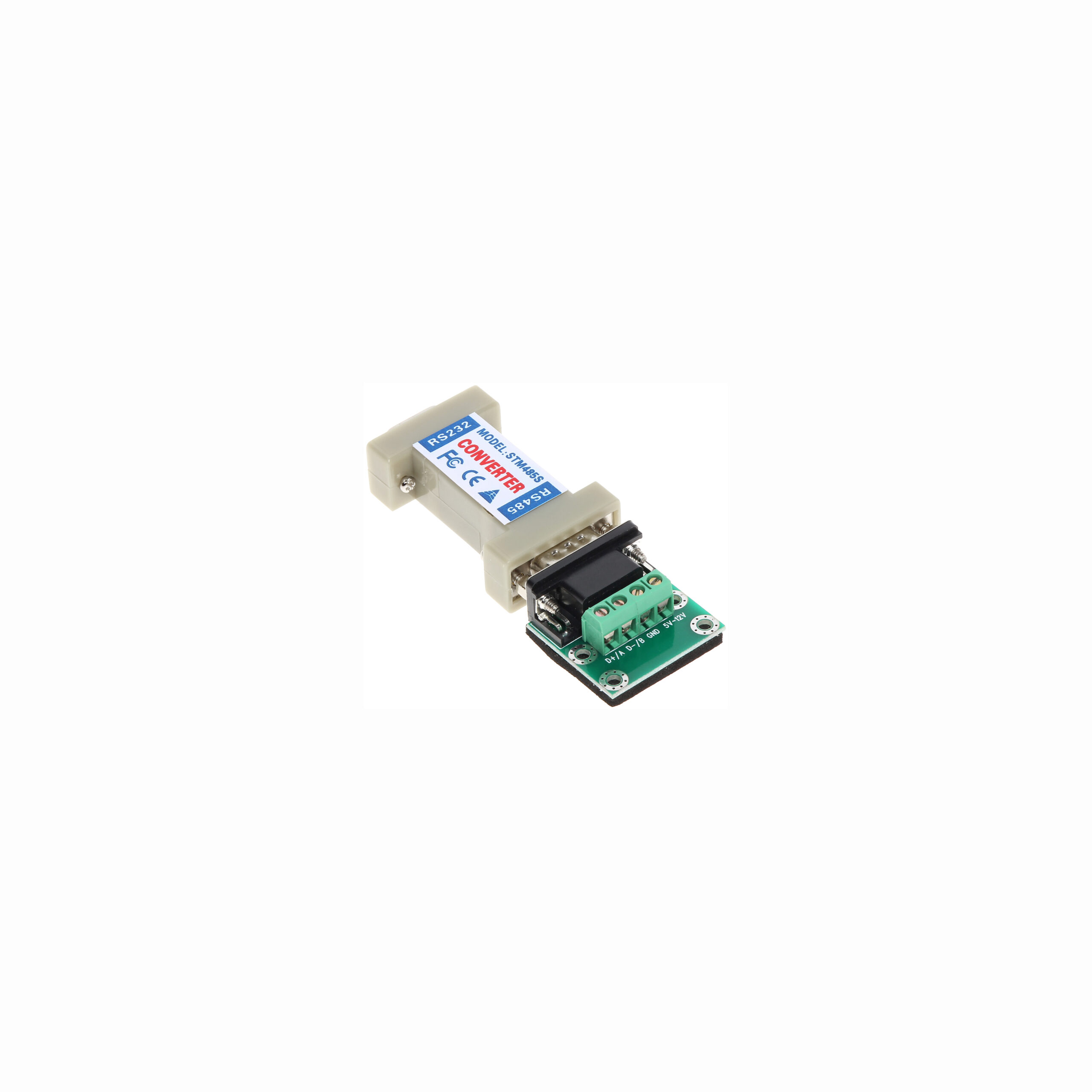

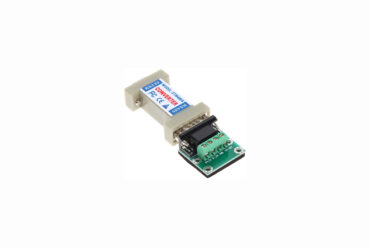

PASSIVE RS485 CONVERTER RS-232-RS-485

Compatible with EIA/TIA RS 232C and RS 485 standards; reliable for industrial communication setups.

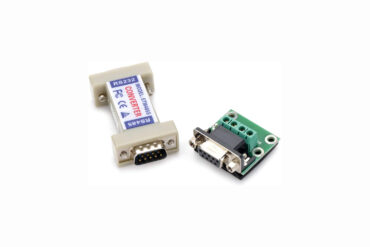

Features DB9 female connector for RS 232 side and DB9 male connector for RS 485 side; includes connection terminal board for easy wiring.
RS 485 supports up to 1200 meters transmission distance; RS 232 supports up to 5 meters.
Supports transmission speeds from 300 to 115200 bps; ensures flexible communication for various industrial applications.
Operates in asynchronous half-duplex mode; ideal for reliable data transfer in demanding environments.

Specification & Features

Compatibility: EIA/TIA RS232C standard and RS485 standard.
Interface RS232 side: DB9 female connector.
Interface RS485 side: DB9 male connector with optional (included) terminal board.
Transmission rate: 300 – 115200bps.
Transmission distance: RS485 max. 1200m, RS232 side max. 5m.
Working mode: asynchronous, half-duplex, differential transmission.
Working environment:-20~70Â°C, relative humidity 5% – 95%.
Dimensions: 3.86 in x 1.26 in x 0.67 in(95mm x 33mm x 17mm).
