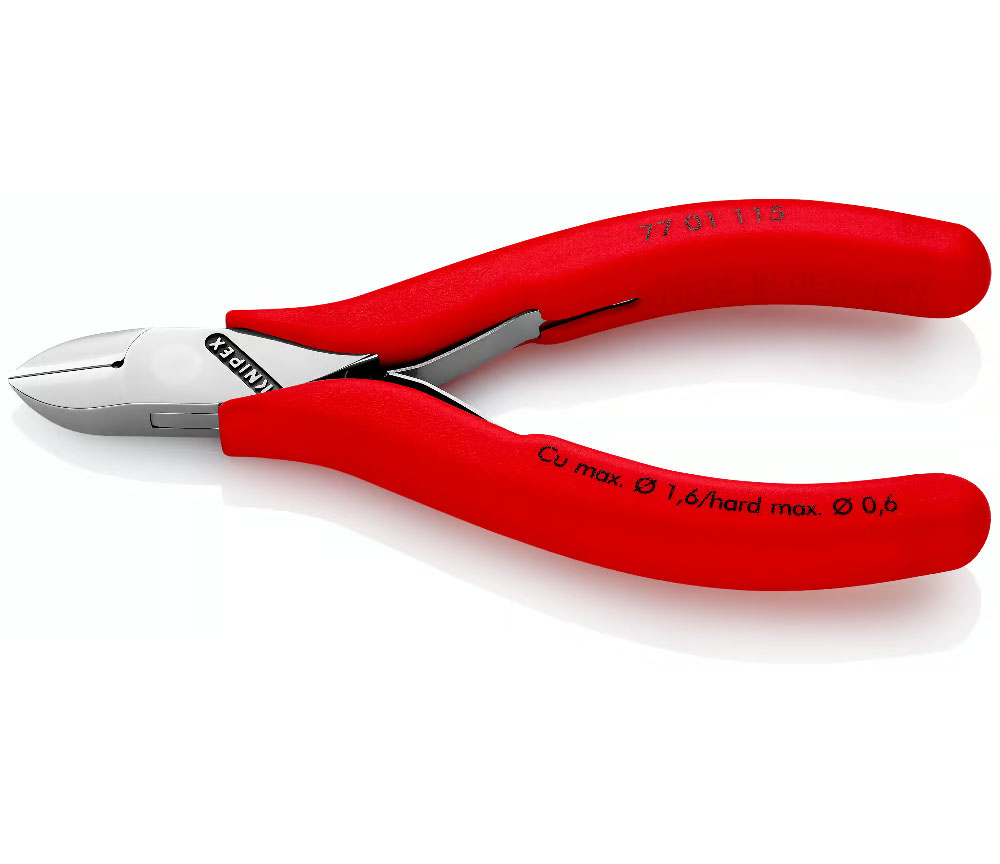

KNIPEX ELECTRONICS DIAGONAL CUTTER (77 01 115)

Durable, load-optimised design with backlash-free box joint.
High, slim sleeves for fine and comfortable gripping between thumb and index finger.
Less physical effort due to very high transmission ratio.
Load-optimised for a more direct feel when working.
Low-friction double spring for smooth and even opening.
The mirror polish in combination with a fine oil film provides rust protection – no circuit faults caused by peeling chrome from plated tools.
Cutters additionally laser hardened, cutter hardness at least 62 HRC.
Round head, with small bevel.

Spec	Value
Part No.	35 12 115
EAN	4003773024835
Head	Mirror polished
Handles	With multi-component handles
Weight	70 g
Dimensions	115 x 51 x 17 mm
Standard	DIN ISO 9655 DIN EN 61 340-5
REACH compliant	Does not contain SVHC
RoHS compliant	Not applicable
Jaw length (B)	22.5 mm
Jaw thickness (joint) (D)	6.5 mm
Tips width (E)	2.0 mm
Tips thickness (F)	4.0 mm
Head width (A)	11.0 mm
ESD	Yes
