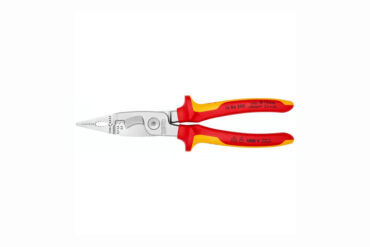

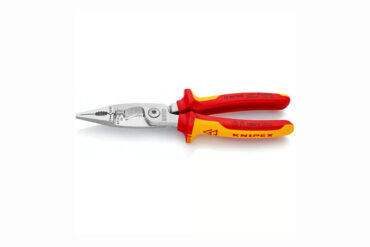

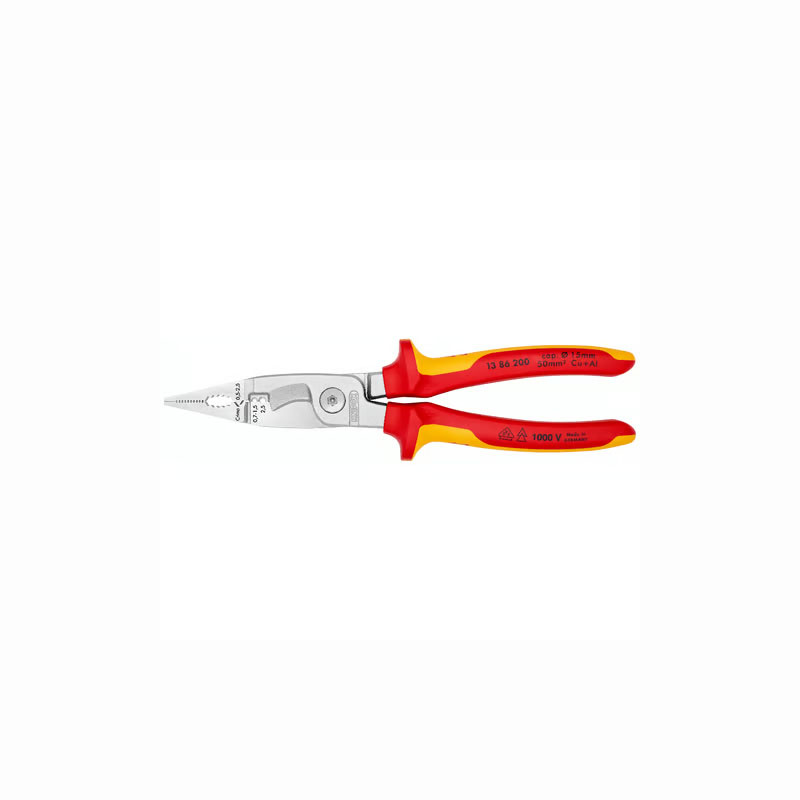

KNIPEX PLIERS FOR ELECTRICAL INSTALLATION (13 86 200)

6 functions in one pair of pliers.
To grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules.
Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material.
Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes.
Stripping holes for conductors of 0.75 – 1.5 mm² and 2.5 mm².
Crimping die for wire ferrules 0.5 – 2.5 mm².
Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm.
Slim dimensions for easy access.
Bolted joint: precise, zero backlash operation of pliers.

Spec	Value
Part No.	13 86 200
EAN	4003773075097
pliers	chrome-plated
Handles	insulated with multi-component grips, VDE-tested
Weight	27 g
Dimensions	200 x 85 x 20 mm
Cutting capacity copper cable, multiple-stranded	Ø 15 mm
Cutting capacity copper cable, multiple-stranded	50 mm²
Stripping capacity for single strands	0.75 — 1.5 mm² / 2.5 mm²
Capacity in square millimetres	0.5 — 2.5 mm²
AWG	1 / 0
VDE tested	Yes
